SMART materials

WHAT DOES „SMART“ MEAN?

Smart materials adapt their properties autonomously and within a short period of time to external stimuli such as mechanical stress, chemical substances, irradiation with laser light, temperature, humidity, as well as electrical and magnetic fields. Smart changes of color, form, surface appearance, viscosity, conductivity, etc. are possible and occur predictably and in a controlled manner.

Attophotonics is a specialist for SMART COLOR MATERIALS. – On the basis of Attophotonics’ nano-color technology they change their color with environmental parameters. Most prominently, they are used as sensors for intelligent packaging e.g. in the food industry. However, they also find application in printing systems, dyes, pigments, in design, the jewelry sector, paper industry, car construction and many other areas.

Indicators for

Optional Indicators for

  • Humidity
  • pH-change
  • water contact (irreversible)
  • skin contact/ package opening
  • chemical stress•Human breath
  • cold chain monitoring - pre-series
  • bacterial activity in milk - pre series
  • detection of bacterial activity in meat
  • detection of solvents
  • inducible optical expire date
  • switchable colors

WATER REACT IRREVERSIBLE AND REVERSIBLE

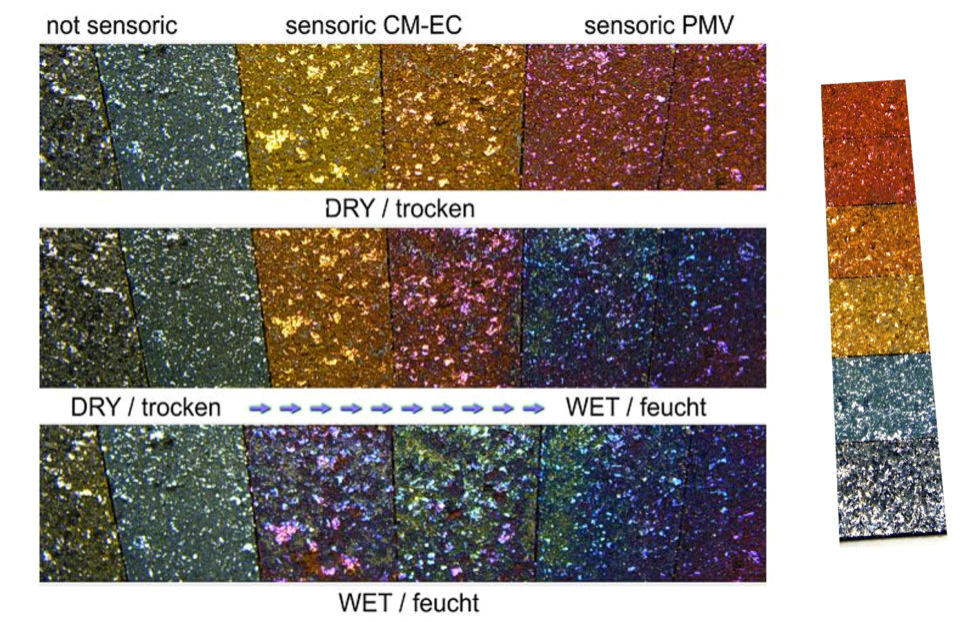

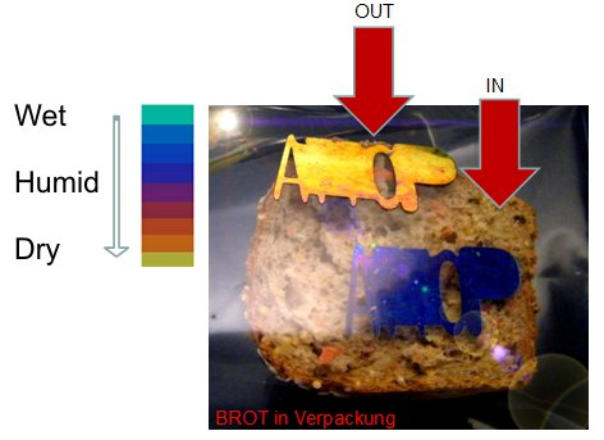

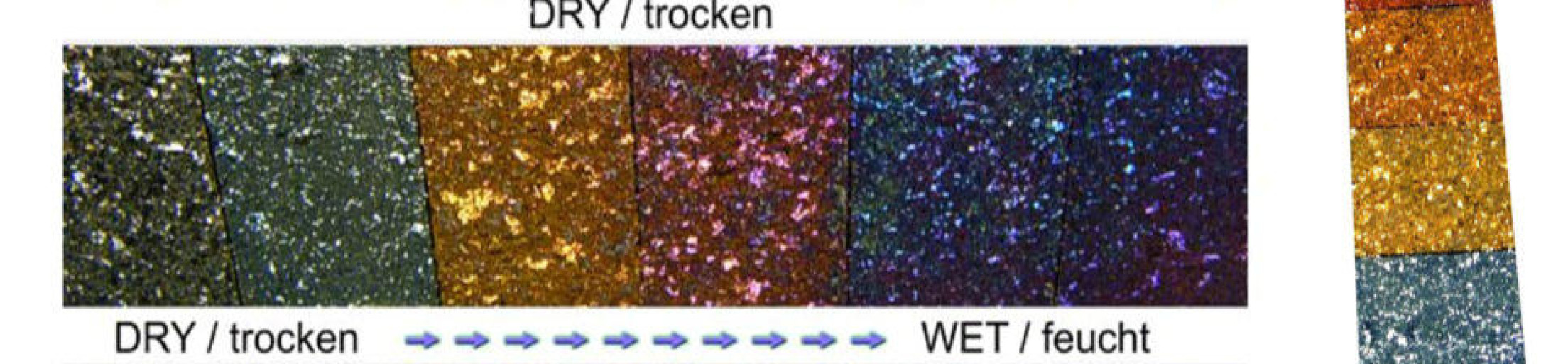

Colors for the detection of humidity and water contact. Attophotonics Water React products combine the proprietary REA-color-technology with humidity-sensitive multiple nano-layers. Contact with water or humidity is directly visualized by a color change e.g. from green to blue. The colors of the Water React products can be adapted according to costumer demands. The speed of response can be modified as required. A color reaction to humidity within 1 second to 1 day is possible.

WATER REACT IRREVERSIBLE

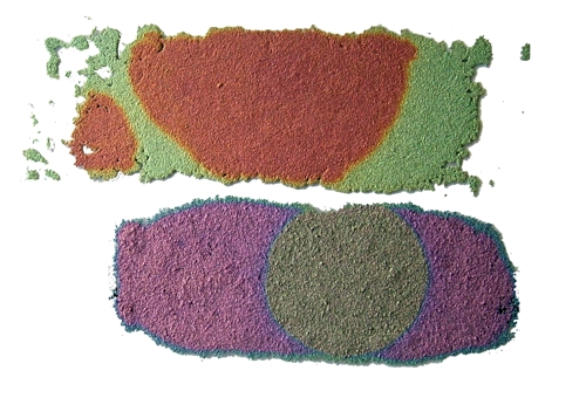

A multi-nano-layer indicates humidity or water contact via an irreversible color change. Available on various polymer films e.g. PET or OPP.

WATER REACT REVERSIBLE

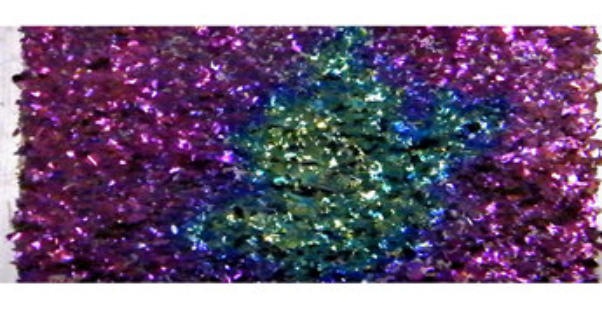

A multi-nano-layer indicates humidity or water contact via a reversible color change. Available on various polymer films e.g. PET, OPP as well as on printable glitter pigments. Also direct coating of materials with the humidity sensitive layer is possible.

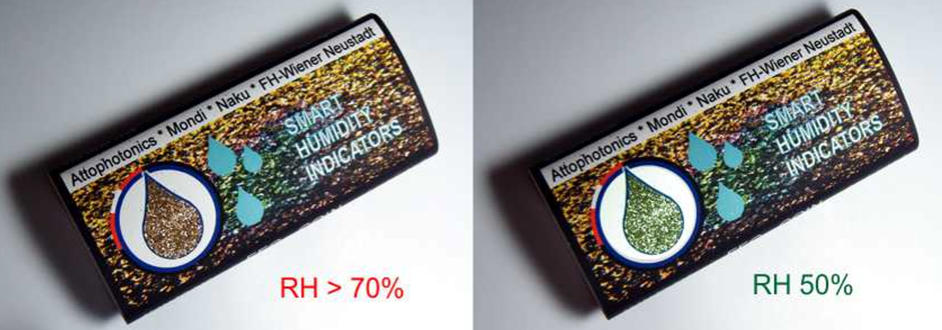

WATER REACT – SMART HUMIDITY SENSORS

Die smarten Feuchte-Sensoren wurden von Attophotonics entwickelt und in Kooperation mit Mondi, Naku und der FHWN für den Markt optimiert.

MULTI-COLORED DISPLAY OF HUMIDITY

Water React films show changes of relative humidity (RH) between 70-90% ultra-sensitively with bright colors.

Calibration: Measurements performed with a ‘Humistat’, a novel device developed in cooperation with FHWN

INTELLIGENT PACKAGING

Nowadays packaging has to meet requirements that go far beyond merely protecting a product. To be able to guarantee product quality and to optimize logistics, packaging is provided with more and more smart components. These do not significantly increase the total costs of the packaging but definitely the value. Whilst so-called active components directly influence the product, intelligent elements e.g. monitor its properties.

Active packaging contains e.g. ethylen-absorbing materials that delay the ripening of fruits and vegetables or antibacterial coatings.Intelligent components include sensors that monitor biological processes and inform the costumer directly and easily (via a color change, for instance) about a deterioration of product quality. Also various time-temp indicators for cold chain monitoring or sensors that indicate microbial growth are already on the market or being developed. Other intelligent packaging parts like RFID-chips supplement the conventional bar code and facilitate product tracking and product identification at the supermarket check-out. Highly requested are also intelligent security labels that protect high quality goods from being counterfeited.

Surface Functionalization

dip-coating or drop-casting with slurries, spray coating and ultrasonic spray coating as well as …

Ultrapure Nano Powders

Purest nanoparticles from various materials and disperse them in freely selectable liquids during …

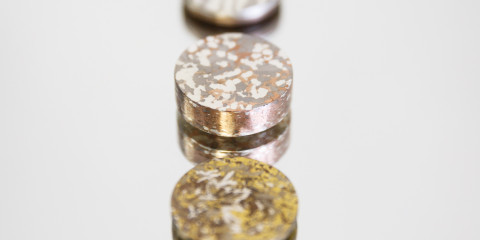

Tiger Metals
